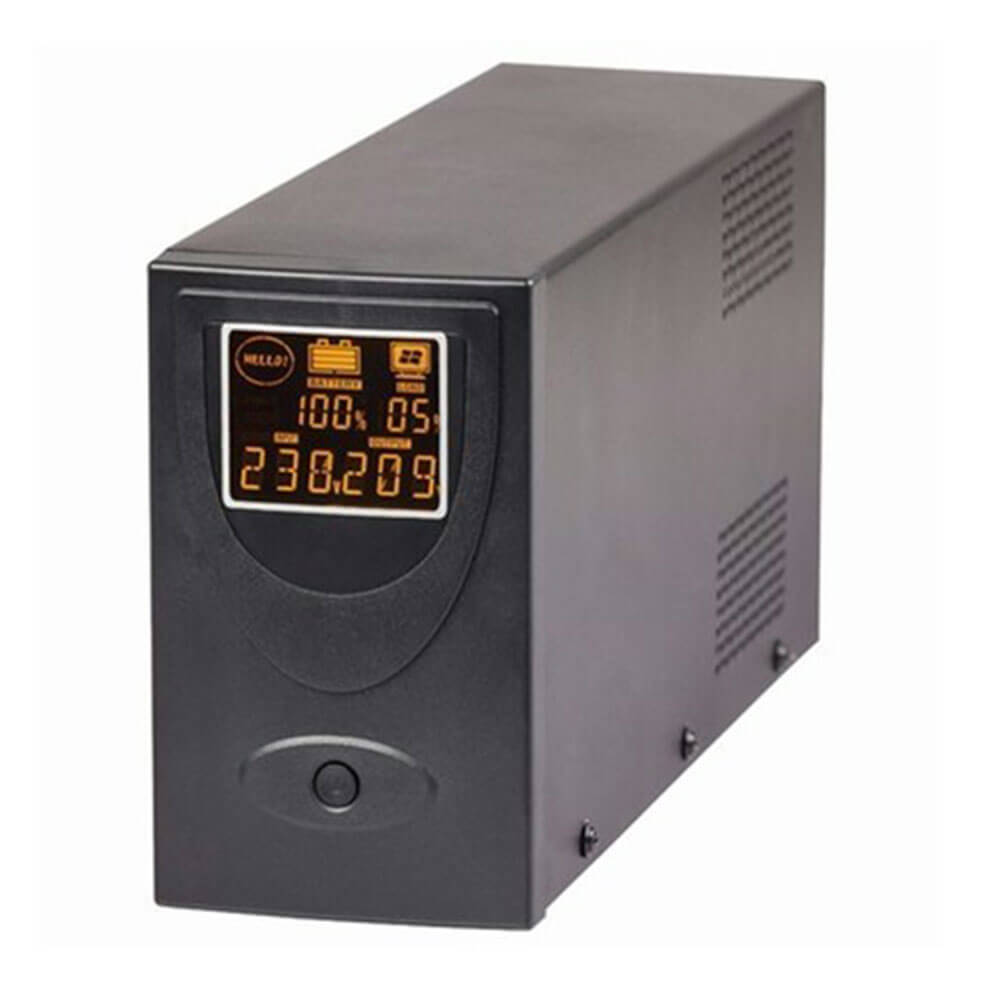

Line Interactive UPS w/ LCD & USB & LCD Display (650VA/390W)

Critical systems should ideally be connected to some form of backup power in the event of a blackout, power surge or brownout. A fault at the grid may drop the voltage at the mains, which could cause some systems to shutdown, reset, lose data or worse, resulting in thousands of dollars of damage (both material and immaterial).

These line interactive units give you a good balance between real time system protection and power redundancy when mains electricity is down or experiencing reliability issues. During mains voltage sags both units will deliver a steady voltage, keeping critical systems running properly. For a total power blackout the units can keep your systems running long enough to save important data or cleanly shutdown connected devices. Other important features include an auto shutdown when no load is detected, audible alarms for low battery, self diagnosis on boot, and intelligent battery management.

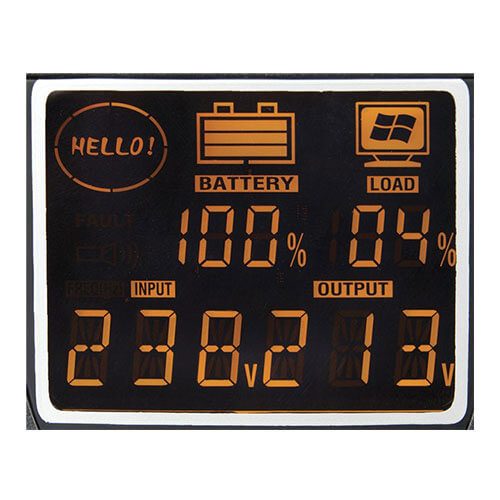

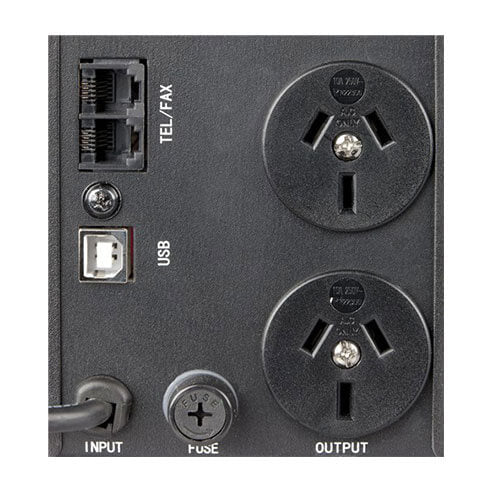

Both models feature an easy to read LCD which displays battery and load values as a percentage and input/output voltages. At the rear of the unit are 2 x RJ11 sockets for Telephone/Fax protection and a USB socket for connection to your PC for use with the power management software.

Features:

• Short circuit protection: Yes
• Mains connections: 2 (input and output)

For all software compatibility check the installation disk.

Product Specifications

• Volt Amps : 650.0VA
• Watts : 390.0W
• Output Frequency : 50.0Hz
• Number of Batteries : 1.0pc
• Computer Interface : USB 2.0
• Switch Over Time : 10.0ms
• Nominal Backup Time : 25.0min
• Backup Time - Light Load (~70W) : 25.0min
• Backup Time - Moderate Load (~140W) : 9.0min
• Backup Time - Standard Load (~200W) : 5.0min
• Recharge Time : 8.0hr
• Display : Basic LCD
• Line Type : interactive
• Output Waveform : Modified Sine Wave
• Phone/Data Filter : true
• Data/Phone Connection : RJ11
• Recommended use : Home PC, Small Office Home Office
• Length : 340.0mm
• Width : 95.0mm
• Mains Voltage Range : 180.0V, 230.0V
• Rated for AU Mains : true
• Rated for US Mains : false
• Mains lead included : true
• Battery Chemical Composition : Sealed Lead Acid (SLA)
• Battery usage : Rechargeable
• Amp Hour Rating : 7.0Ah
