Description

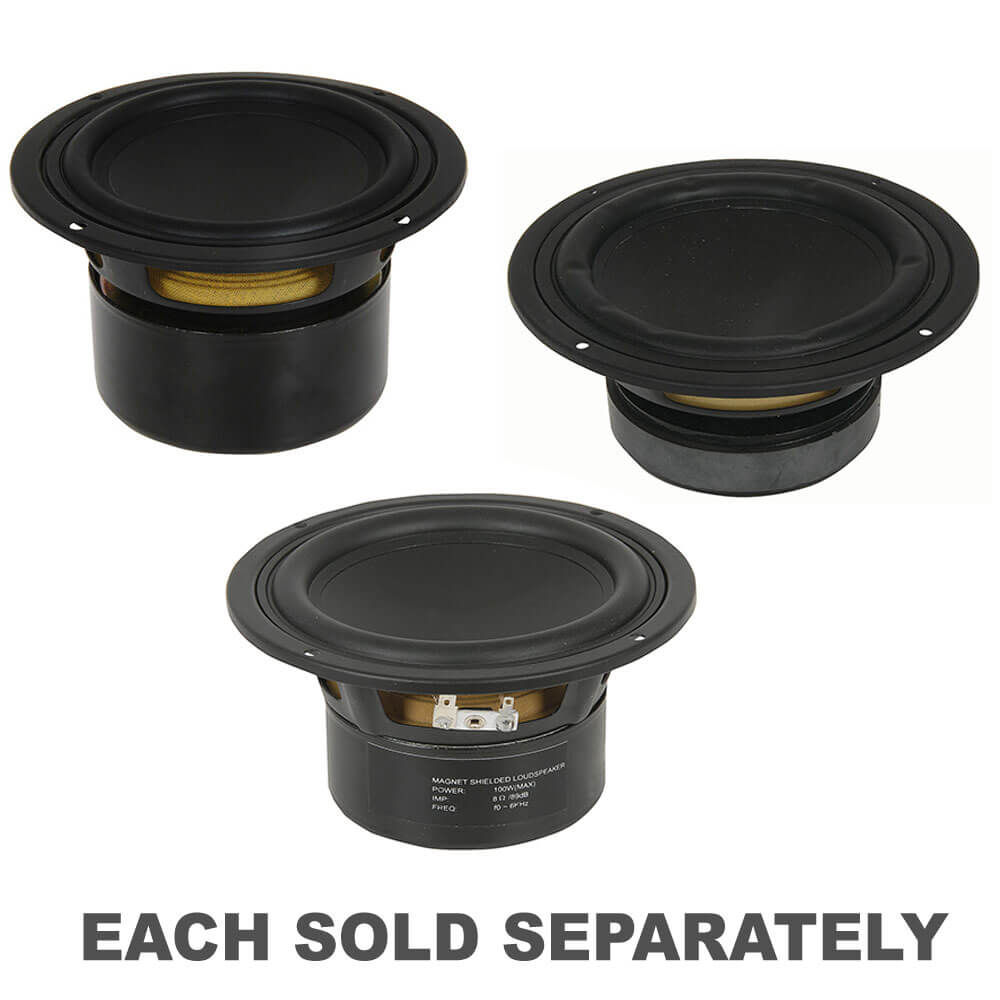

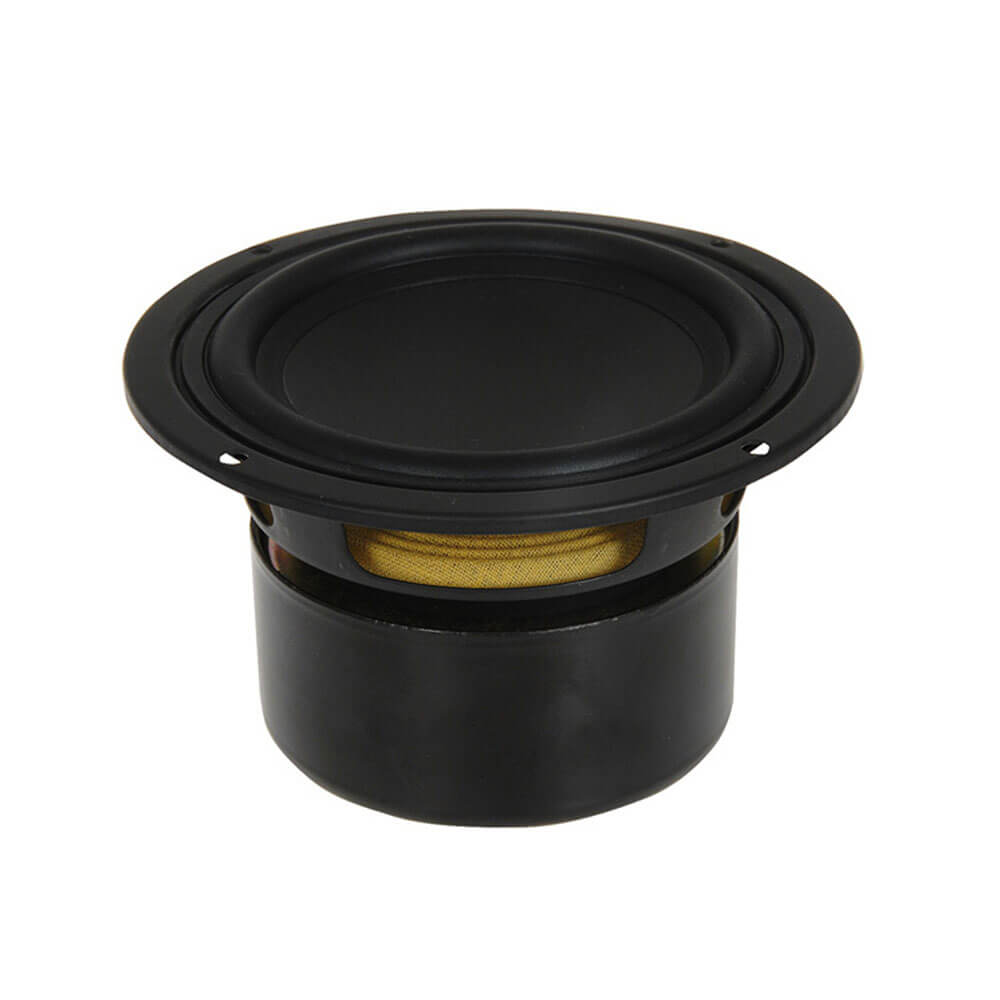

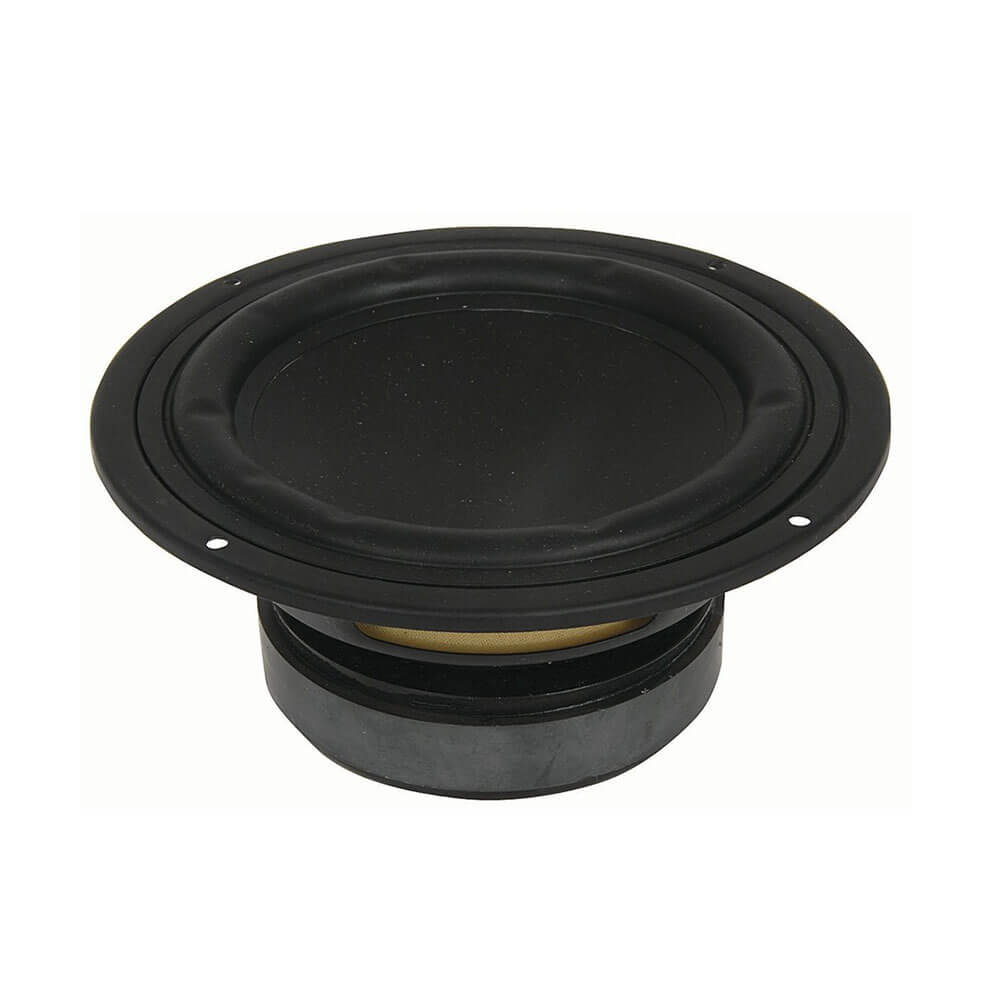

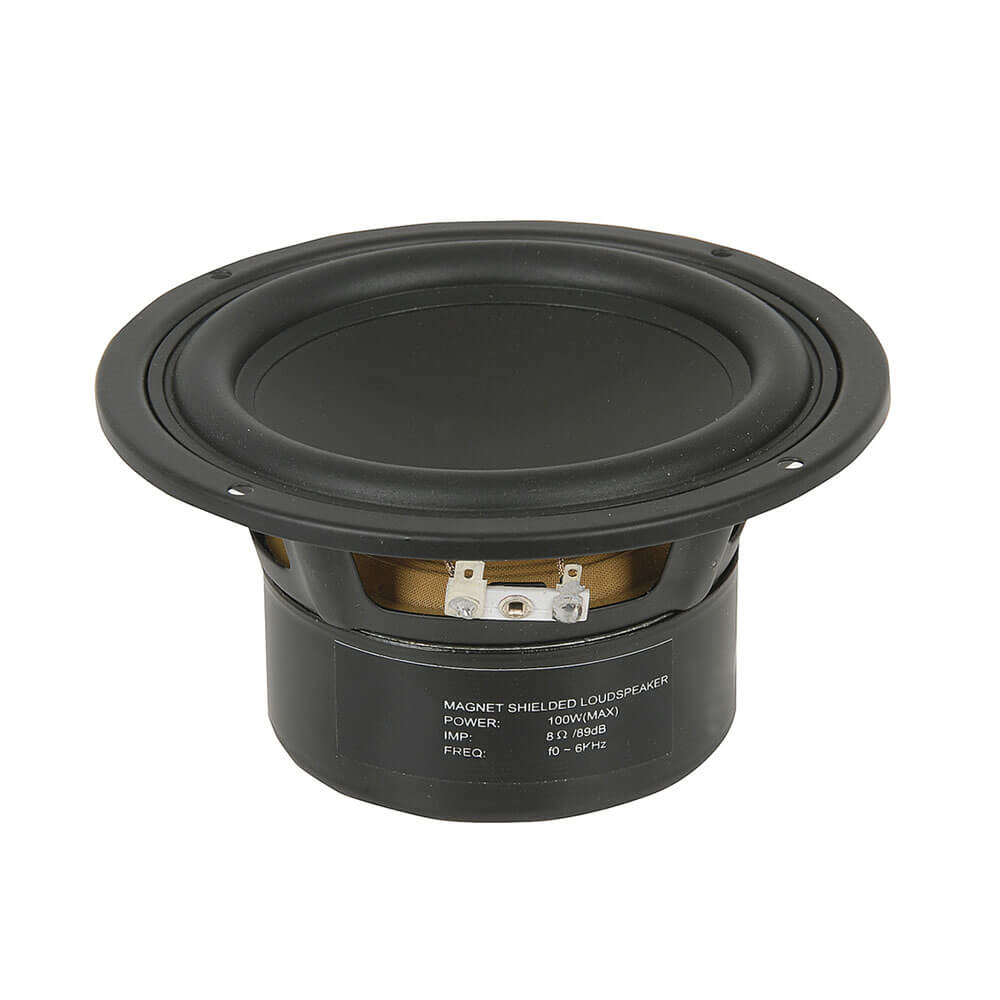

These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
Product Specifications
- Resonant Frequency 49.5Hz
- Nominal Impedance 8Ω
- Recommended Speaker Box Volume 19l
- Mounting Hole Diameter (B) 168mm
- Driver Material Coated Paper
- Mechanical Q (Qms) 2.02
- Speaker Type Woofer/Midrange
- Driver Channels Single Driver
- Total Q (Qts) 0.44
- Electrical Q Factor (Qes) 0.57
- RMS Power Rating 60W
- Equivalent Volume (Vas) 19l
- Frequency Response 44Hz-7kHz
- DC Coil Resistance (Re) 6Ω
- Side-to-Side Diameter (A) 178mm
- Cutout Diameter (C) 145mm
- Insert Depth (D) 77mm
- Cutout shape Round
