Description

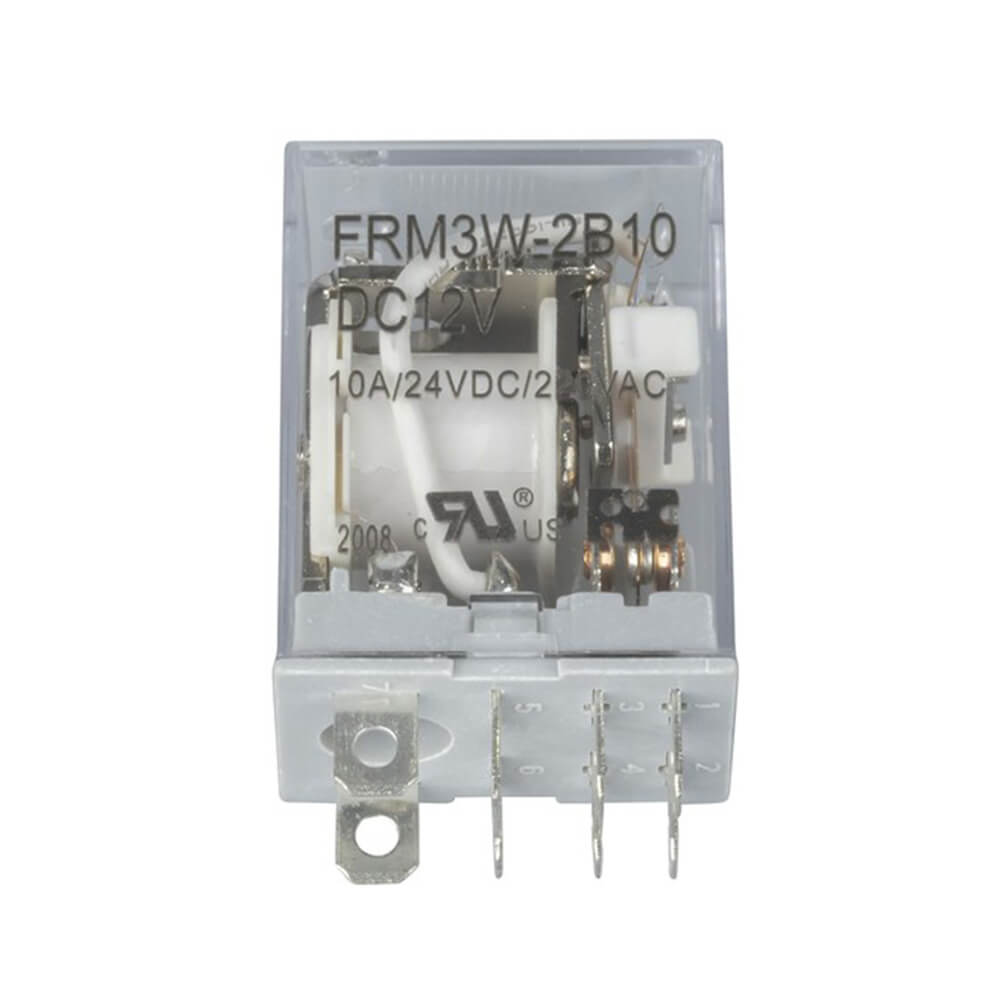

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Product Specifications
- Length : 20mm
- Width : 27mm
- Height : 35mm
- DC Voltage : 12V
- DC Current Draw : 75mA
- Item connection : Spade Terminals
- Mounting Method : Cradle/Socket Mount
- Packaged Volume : 0.02l
- Packaged Weight : 0.04kg
- Packaged Length : 2.5cm
- Packaged Width : 2cm
- Packaged Height : 4.5cm
- Device Type : Cradle Mounting Relay
- Input : DC
- Contact format : DPDT
- Nominal Voltage : 12V
- Coil Resistance : 160Ω
- Coil Current : 75mA
- AC Contact Voltage : 240V
- AC Switching Current (Opening) : 10A
- DC Contact Voltage : 24V
- DC Switching Current (Opening) : 10A
- Operation Time : 25ms
| Length : 2.5 cm | Width : 2 cm |
| Height : 4.5 cm |
