Description

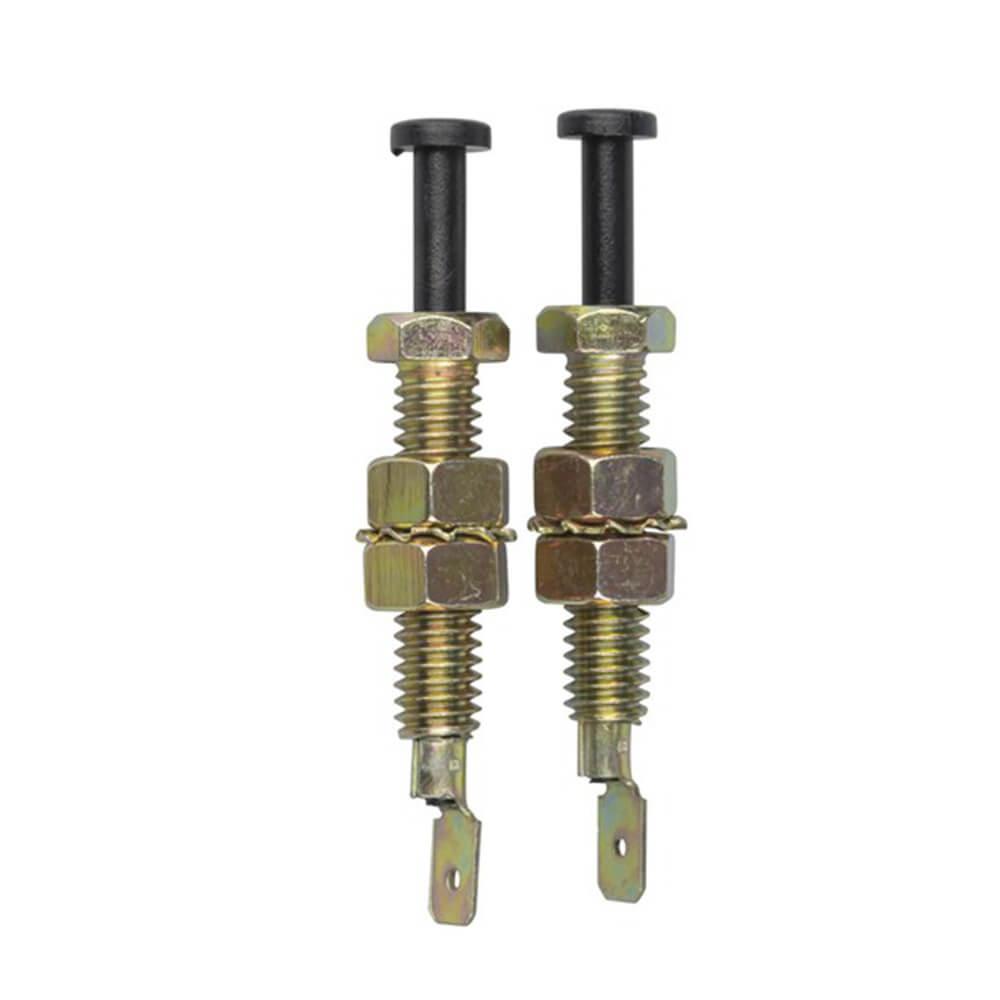

Especially good for car bonnets, this heavy duty pin switch is nickel plated for protection from corrosion in hostile environments. The plunger is plastic and can be cut to suit the required length/depth. Supplied with locking nuts and star washer. The bezel's mounting depth is also adjustable. When plunder is depressed circuit is open. When plunger is extended circuit is open. Termination is via a 6.4mm spade lug.
Features:
Facia nut size: 11mm
Locking nut size: 12mm
Travel (max): 13.5mm.
Product Specifications
- Length : 70mm
- Diameter : 7.75mm
- Packaged Volume : 0.03l
- Packaged Weight : 0.04kg
- Packaged Length : 7cm
- Packaged Width : 3cm
- Packaged Height : 1.5cm
- Dimensions details : main
- Length : 38mm
| Length : 7 cm | Width : 3 cm |
| Height : 1.5 cm |
